Choosing the right foam depth starts with the job the material must perform. A thin lining layer, a seat cushion, a protective case insert and an acoustic panel do not need the same construction. The available foam sheet thickness options range from slim specialist sheets measured in millimetres to upholstery grades supplied up to 4 inches, but thickness should never be selected on its own. The foam grade, firmness, support beneath it, available space and expected load all affect the result. Before ordering, define the application, measure the finished space and then compare only the products designed for that purpose. This avoids a common mistake: choosing a depth first and trying to make an unsuitable foam grade fit the job.
What foam sheet thickness actually changes
Thickness is the distance between the two broad faces of a flat foam sheet. It affects how much material is available to compress, bend, wrap, cushion or absorb impact. It also determines whether the finished piece will fit inside a cover, frame, recess, case or enclosure.
A deeper sheet can provide more cushioning or separation between two surfaces, but it does not automatically provide firmer support. A 4 inch soft foam and a 2 inch very firm foam can behave very differently. Similarly, a thin closed cell sheet may suit sealing or lining work that a much thicker open cell upholstery foam cannot perform.
Thickness affects the amount of compression available under load, the finished height of a cushion or insert, how easily the material bends around edges, the clearance inside a case or frame, the amount of material needed for shaped pieces, the final weight and bulk, and the cost of the selected sheet.
The correct depth is therefore a practical measurement, not a comfort rating. It must be considered alongside firmness, density, recovery and product type. Our foam density versus firmness guide explains why these properties should not be treated as interchangeable.
Start with the finished space, not the old foam
When replacing an existing insert, measure the space the new foam must fill rather than relying only on the worn material. Old foam can soften, compress, shrink or become permanently misshapen. A cushion that began at 3 inches may no longer measure 3 inches after years of use.
Record the required width, length and finished depth. For covers, check the internal between the seams dimensions and measure at more than one point. For fixed furniture, measure the frame opening and inspect the support beneath it. For packaging, measure the item and the internal dimensions of the case or box. For panels and lining work, check whether the foam must sit flush, compress slightly or remain below an edge.
Do not automatically add extra thickness. A deeper insert may strain a zip, distort a cover, raise a seat too high or prevent a case from closing. A thinner insert may leave loose fabric, expose a hard base or allow a protected item to move. The foam measuring guide provides a fuller checklist for recording dimensions before purchase.

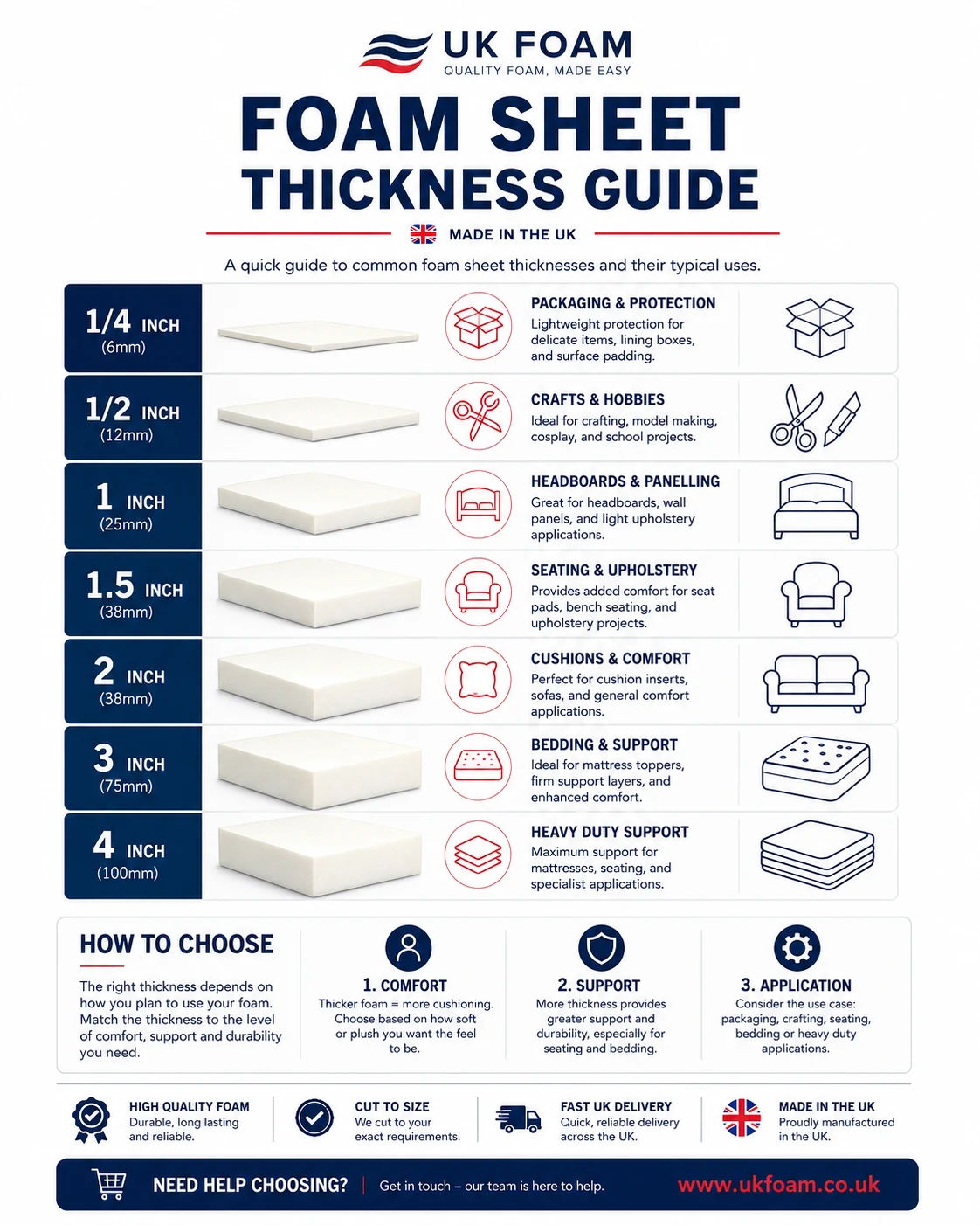

Common upholstery thicknesses from 1/4 inch to 4 inches
Most standard All Foam upholstery, general purpose and flat packaging grades are available in seven depths.
1/4 inch: Approximately 6.3mm.
1/2 inch: Approximately 12.7mm.
1 inch: Approximately 25.4mm.
1.5 inches: Approximately 38.1mm.
2 inches: Approximately 50.8mm.
3 inches: Approximately 76.2mm.
4 inches: Approximately 101.6mm.
This range applies to products including Average Soft, Medium, High Firm, Cot Safe, Reflex Pink Medium, Reflex Grey Firm, Severe Very Firm, both Reconstituted grades, Packaging Foam Flat Sheet, Antistatic Pink Packaging Sheet and Acoustic Foam Flat Sheet. The intended use still differs between products, so the shared thickness range does not make them interchangeable.
1/4 inch foam sheets
A 1/4 inch sheet is a slim layer. It is useful where the foam needs to add light padding without creating substantial depth. Typical project types can include lining, wrapping, spacing, craft work, thin protective layers and surface cushioning.
This depth is easy to bend around gentle edges compared with deeper foam. It can also be layered with another material where a small amount of separation is needed. It is not usually a complete seat cushion by itself. Even when the grade is suitable for seating, 1/4 inch provides very little material between the user and the support below.
For upholstery work, use this thickness only when the construction specifically calls for a thin layer. Average Soft Foam can suit headboards and light padding, while Medium or firm grades may be used in other defined applications. The product description should decide the grade before the depth is chosen.
1/2 inch foam sheets
A 1/2 inch sheet adds more padding while remaining relatively easy to shape and handle. It can suit panels, headboards, protective lining, shallow pads, craft projects and packaging where space is limited.
This thickness can soften a hard surface or add a more noticeable buffer than 1/4 inch. It may also be used as one part of a layered construction. It remains shallow for supporting seating, so do not assume that selecting a firmer foam automatically makes it suitable as a complete seat cushion.
When fitting 1/2 inch foam into a cover or recess, check the actual available depth. The difference between 1/4 and 1/2 inch can be significant in tightly fitted panels, instrument cases, drawers and enclosures.
1 inch foam sheets
A 1 inch sheet is a practical middle point for many shallow applications. It can provide noticeable padding for panels, backs, protective inserts and general foam projects without the bulk of a deeper cushion.
For seating, the application and grade matter. A shallow dining chair pad, kneeler or specialist support may use a firm or very firm grade at this depth, but softer general purpose foam may compress too far. Severe Very Firm Foam is specifically described as suitable where extra firmness is required, particularly in thinner seat cushions. This does not mean it is the correct choice for every 1 inch seat, because the base, cover and preferred feel still affect the result.
A 1 inch packaging insert gives more material for recesses and protective spacing than thinner lining foam. Plan the recesses carefully so enough foam remains around the item.
1.5 inch foam sheets
At 1.5 inches, the foam begins to provide a more substantial cushion or insert. This depth can suit some chair pads, backs, benches, packaging constructions and shaped components where 1 inch is too shallow but 2 inches would be too bulky.
The foam grade becomes increasingly important because the piece may now be expected to support more weight. Medium Foam may suit back cushions and general upholstery, while High Firm, Reflex or Severe Very Firm products may be considered for seating according to the intended feel and support.
For a replacement cushion, confirm whether the cover was designed for 1.5 inches. Forcing a 2 inch insert into a 1.5 inch cover is not a reliable way to create extra fullness. It can alter the shape and make the surface feel firmer because the cover restricts expansion.
2 inch foam sheets
A 2 inch sheet is a common substantial depth for pads, some seat cushions, backs, benches and protective inserts. It gives more room for compression than 1 or 1.5 inches, but the correct firmness remains essential.
High Firm Foam is listed for seating and upholstery projects needing extra support. Reflex Medium and Reflex Firm provide responsive recovery for premium seating and mattress applications. Severe Very Firm Foam is noted for thinner seat cushions, including applications under around 2 or 3 inches where extra firmness is required.
A 2 inch Average Soft sheet remains unsuitable for seating because increasing the depth does not change the grade's intended use. The same principle applies across the range: thickness can support the application, but it cannot replace the correct product selection.
3 inch foam sheets
A 3 inch sheet offers deeper cushioning and is commonly considered for substantial seating, benches, replacement pads and larger protective constructions. More depth allows greater compression before the support below is reached, but it can also raise the finished seating position or change the proportions of furniture.
For a sofa, chair or window seat, inspect the frame and cover before ordering. A 3 inch insert on a solid board may feel different from the same foam over webbing or springs. A tight cover can also change the feel and apparent firmness.
When using a 3 inch sheet for packaging, the recess design matters. Deep foam can protect and separate an item, but it also reduces the usable internal volume of the case. Check the lid clearance and the depth of any top layer.
4 inch foam sheets
A 4 inch sheet is the deepest standard option across many of the flexible foam products in the current range. It can suit deep cushions, mattress work, substantial pads and large protective inserts where the finished dimensions allow it.
Do not select 4 inches simply because deeper sounds more supportive. A cushion may become too tall for the furniture, too tight for the cover or unnecessarily soft if the grade is not matched to the load. A deep very firm foam can also feel more resistant than the customer expects.
For replacement seating, use the original design dimensions where they remain reliable, then check the cover and frame. For a new construction, establish the target seat height and support system before deciding the foam depth.
The upholstery foam guide explains how to compare the available grades after the required thickness has been measured.
Thickness for seat cushions and benches
Seat cushion depth should be chosen with four factors in mind: the available space in the cover or frame, the support beneath the cushion, the foam grade and firmness, and how the furniture will be used.
A shallow seat has less foam available to compress, so it may require a firmer grade than a deeper cushion. A frequently used bench may need more support than a decorative occasional chair. A solid timber base can feel harder than webbing or springs.
High Firm Foam is intended for seating and projects needing extra firmness. Reflex Pink Medium and Reflex Grey Firm are responsive upholstery grades suitable for seating and mattresses. Severe Very Firm Foam is designed for applications requiring very firm support, especially thinner seat cushions. Reconstituted foams are dense, very firm products suited to defined contract, commercial and specialist uses.
There is no single correct seat thickness for every item of furniture. Match the depth to the construction, then choose among the grades that are actually suitable for seating.
Thickness for back cushions, headboards and padded panels
Back cushions usually carry less direct load than seat cushions. This means the choice may focus more on shape, comfort and fit than resistance to concentrated weight. Medium Foam can suit back cushions and general upholstery, while Reflex grades may be selected where responsive recovery is wanted.
Headboards and decorative panels often use thinner foam because the purpose is to soften the surface and create a padded profile. Average Soft Foam is listed for headboards, light padding and craft work, but not for seating. A thin sheet is usually easier to wrap neatly around a panel edge than a deep block.
The correct depth depends on the intended visual profile. A lightly padded panel may need only 1/4 or 1/2 inch, while a more pronounced upholstered finish may use 1 inch or more. Allow for fabric, wadding and any edge treatment when calculating the final total depth.
Thickness for packaging foam
Packaging foam thickness should be based on the item, available case space and required separation from hard surfaces. The foam may be used as a flat liner, a shaped insert, a divider, a lid layer or a convoluted protective surface.
Flat Packaging Foam and Antistatic Pink Packaging Sheet AS22 are available from 1/4 inch to 4 inches. Closed-cell and semi-rigid packaging products use their own metric thickness ranges. If you are replacing an existing convoluted insert, measure both the peak height and the available lid depth rather than treating a profile as a solid thickness.
A thin liner can prevent direct contact and reduce movement where space is limited. A deeper flat insert allows shaped recesses and more distance between an item and the outer case. Convoluted foam uses a profiled surface, so its stated overall thickness should not be interpreted in exactly the same way as a flat solid sheet.
When planning an insert, follow a measured sequence.
1. Measure the case interior. Record the usable width, length and depth rather than relying on the outside dimensions.
2. Measure the item. Check its widest, longest and deepest points, including handles, switches and fittings.
3. Allow for every foam layer. Include the base, sides and lid foam in the available space.
4. Decide how the item will be held. It may sit inside a shaped recess or between flat protective layers.
5. Test the closing clearance. The case should close without forcing the foam tightly against the item.
6. Select the right packaging product. Match the foam to the item, environment and required protection.
Electronic components may require an antistatic product rather than ordinary packaging foam. Closed cell products may be more suitable where water resistance or a firmer structure is required. The packaging foam sheets guide covers these product differences in more detail.
Metric thicknesses for closed cell and specialist foam
Closed cell, rubber and specialist foam products do not all follow the 1/4 inch to 4 inch upholstery scale. Their selectors use metric depths matched to the product.
Current All Foam specialist ranges use the following depths.
AFP30 and AFP45 closed cell polyethylene: 2mm to 100mm.
Ethafoam STPE200: 5mm to 100mm.
EPDM closed cell rubber: 2.5mm to 20mm.
Class 0 Acoustic Foam Sheet: 6mm to 50mm.
If you are replacing an older profiled acoustic sheet, measure its maximum profile depth and identify the original specification before choosing a current flat replacement.
These figures describe depth, but each material has a different structure and intended use. A 10mm EPDM rubber sheet, a 10mm polyethylene sheet and a 1/2 inch upholstery foam are not equivalent products.
AFP30 and AFP45 are rigid closed cell polyethylene grades supplied unbacked. Plastazote LD33 is a cross linked closed cell material commonly available in several colours, but it is no longer part of the current All Foam product range. Ethafoam STPE200 is a semi-rigid packaging sheet. EPDM is a flexible closed cell synthetic rubber. Select the material first, then choose the thickness that fits the design.
Our open cell versus closed cell foam guide explains the structural distinction between these categories.
Thickness for acoustic foam
Acoustic foam is selected for the intended treatment, available installation depth and product specification. The current All Foam range uses flat standard and flat Class 0 acoustic sheets with different thickness options.
Class 0 Acoustic Foam Sheet is available in 6mm, 12mm, 25mm and 50mm. Standard Acoustic Foam Flat Sheet is available from 1/4 inch to 4 inches. If you are comparing an older profiled acoustic lining, measure its maximum profile depth separately and check the exact product data before choosing a replacement.
A thicker sheet occupies more wall, ceiling or enclosure depth, so installation space must be considered before purchase. Flat and convoluted profiles also present different surfaces, meaning their listed depths should be compared within the same product type rather than treated as directly interchangeable.
Thickness alone does not establish whether a product meets a required fire classification or acoustic specification. Check the product card and technical document for the exact material. The flat versus convoluted acoustic foam guide provides a fuller comparison of the two profiles.
Layering foam sheets
Layering can be useful when a project genuinely requires more than one material or performance characteristic. Examples include a firm base with a softer comfort layer, a protective insert with a different lid foam, or a thin lining layer over a more rigid substrate.
Do not layer sheets only to avoid measuring the correct depth. Two loosely fitted layers can move against each other, create uneven edges or alter the way the finished component compresses. Adhesive, cover tension and the surrounding construction affect whether a layered build remains stable.
When planning layers, record the individual depth of every material and add them together. Include fabric, boards, any bonding layer and any wrap or wadding in the total finished thickness. Confirm that each foam grade is suitable for its role.
Allow for fixing layers and surrounding materials
If a separate bonding layer forms part of the finished assembly, include it when checking the available depth. Fixing layers are not a substitute for choosing the correct foam thickness or preparing the substrate properly.
Also account for fabric, lining, wadding, wrap, plywood, backing boards, case linings, covers, seams, rigid supports, and any gap needed for ventilation or movement.
A foam piece rarely exists in isolation. Measuring the full assembly helps prevent a component from becoming too thick after every layer is added.
Common thickness selection mistakes
Choosing the deepest option without checking fit
More foam is not always better. Excess depth can distort covers, raise seat height, prevent lids from closing or reduce usable space.
Using thickness to compensate for the wrong grade
A deep lighter density foam does not become a firm seating grade. A thin very firm foam does not become soft padding. Product suitability comes first.
Measuring only the worn insert
Old foam may no longer represent the original size. Measure the cover, frame or enclosure as well.
Ignoring the base beneath a cushion
The support system affects how the finished cushion feels. Repair damaged webbing, springs, boards or frames before judging the foam depth.
Treating inch and metric products as interchangeable
Use the stated measurements. For reference, the current upholstery range labels 1/4 inch as 6.3mm, 1/2 inch as 12.7mm, 1 inch as 25.4mm, 1.5 inches as 38.1mm, 2 inches as 50.8mm, 3 inches as 76.2mm and 4 inches as 101.6mm.
Ignoring the exact product selector
Not every foam is offered in every depth. The current flat packaging and acoustic ranges each have their own thickness choices, while closed cell products use separate metric ranges. If you are replacing an older convoluted sheet, measure its maximum profile depth separately and do not assume that dimension matches a flat sheet. Check the live selector before planning the project around a current product size.
A practical process for choosing foam thickness
Use this order.
1. Define the application. Be clear about the job the foam must perform.
2. Measure the finished space. Record the cover, case, frame or enclosure accurately.
3. Check the existing foam carefully. Use it as a reference, but not as the only measurement.
4. Identify suitable products. Remove any foam grades that are not designed for the application.
5. Compare the remaining grades. Consider firmness, structure and recovery.
6. Select the thickness. Match it to the construction, available space and expected load.
7. Account for surrounding materials. Include fabric, boards, adhesive, wrap and every other layer.
8. Plan the cuts. Check that the required pieces fit within the selected sheet size.
9. Review technical information. Check fire information and the relevant data sheet where required.
10. Recheck the order. Confirm every selected option before adding the sheet to the basket.
The right thickness is the one that fits the complete project and allows the chosen foam grade to perform its intended role. For upholstery and general flexible foam, this may be anywhere from 1/4 inch to 4 inches. Closed cell, rubber, packaging and acoustic products use more specialised metric ranges. Compare the current foam sheets by application, size and depth, and use the foam data sheets where a technical property must be confirmed. For an unusual construction, contact All Foam with the intended use, finished dimensions, support arrangement and preferred result before ordering.
