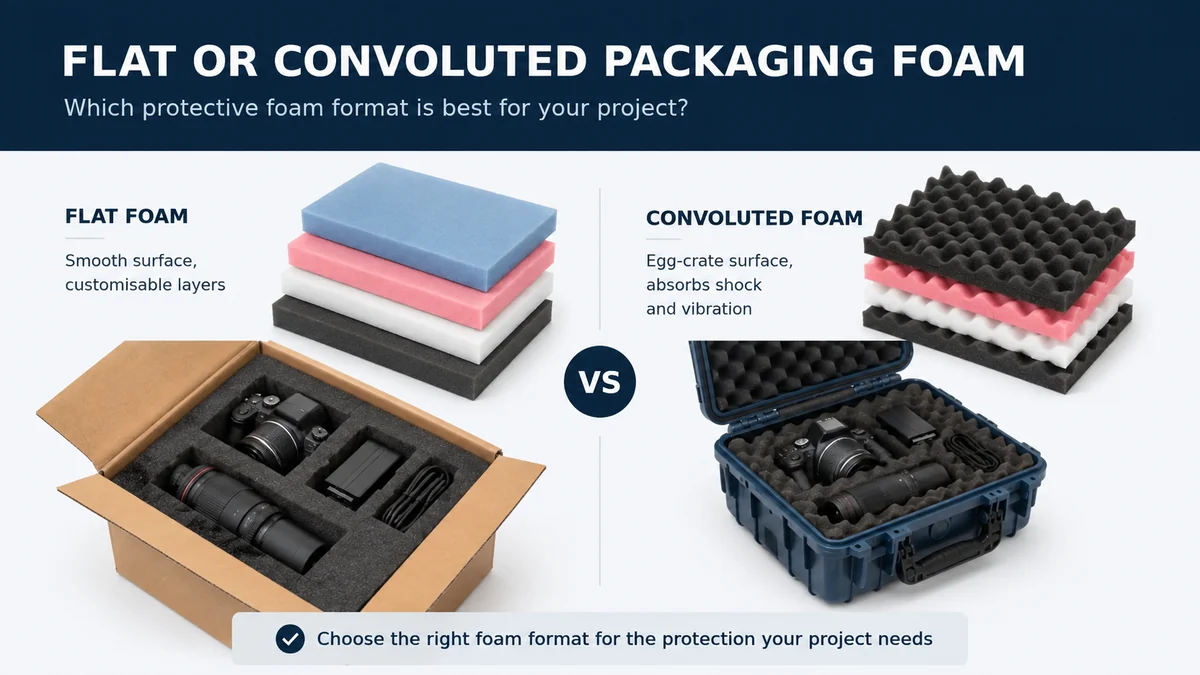

Flat packaging foam provides an even surface, while convoluted packaging foam uses raised peaks and valleys. Neither profile is best for every job. The choice depends on the item shape, weight, available depth and whether the foam is being used in a base, side or lid. The All Foam packaging foam sheets page lets customers compare both formats with other protective foam types.
This guide explains how the surface profile changes contact, pressure and fit, helping you choose the right option for boxes, cases, tools and fragile products.
What is flat packaging foam?
Flat packaging foam has a level surface and a consistent thickness across the sheet. It creates broad contact with an item or case wall.
It can be used for:
- lining cardboard boxes
- creating base and side pads
- separating products
- protecting polished surfaces
- building simple case inserts
- layering around irregular objects
Because the surface is even, it is easier to measure the space it will occupy. It also provides more continuous support than a profiled sheet of the same maximum height.
What is convoluted packaging foam?
Convoluted foam has an egg crate profile with raised peaks. The profile allows the surface to compress around items of slightly different heights.
It is commonly considered for:
- flight case lids
- equipment case lids
- boxes containing several light objects
- camera and instrument cases
- general cushioning where a flexible contact surface is useful
The peaks compress first, so the material can create gentle contact without a precisely cut cavity. The exact feel depends on the foam and profile depth.
Contact area
Flat foam touches a broad area when the item surface is flat. This spreads pressure and can provide stable support.
Convoluted foam initially touches at the peaks. This reduces the first contact area and allows the peaks to compress around uneven surfaces.
For a heavy item, small peak contact areas can concentrate pressure until more of the profile compresses. A flat base may therefore be more suitable beneath weight, while convoluted foam can work well in a lid.
Base foam versus lid foam
The base carries the item during storage. It usually needs stable support and enough thickness to stop the product reaching the hard floor of the case or box.
Flat foam is often easier to use in the base because it supports the item evenly. A shaped cavity or additional block can locate the product.
The lid controls vertical movement. Convoluted foam can contact items at different heights and apply gentle pressure as the case closes.
This is not a fixed rule. A light product may use convoluted foam in the base, while a flat lid may suit an item with a regular top surface.
Boxes and parcels
Flat sheets can line the walls of a cardboard box, create separators and protect surfaces from rubbing. They are easy to cut into rectangles and layers.
Convoluted foam can fill some empty space and cushion a light product from above. It should not be used simply as loose void fill without checking that the item remains securely controlled.
A courier parcel can be placed on any face. Plan protection in every direction rather than treating the bottom as the only impact surface.
Flight cases and tool cases
Reusable cases often combine profiles. A flat or shaped insert holds the equipment in the base. Convoluted foam in the lid prevents vertical movement and accommodates accessories of slightly different heights.
The lid should close normally. If the convoluted foam is compressed until nearly flat before the latch engages, it may place excessive pressure on the contents.
For tools with sharp edges or oily surfaces, consider whether the foam is compatible and easy to clean. Leave finger access so tools are not pulled out by tearing the foam.
The guide to foam sheets for toolboxes and flight cases covers insert planning in more detail.
Fragile items
Fragile products need controlled cushioning without pressure on vulnerable features.
Flat foam can spread load across strong surfaces. It can also be cut away around switches, handles and connectors.
Convoluted foam can provide a softer first contact, but peaks may press against protruding features. Check the actual item shape and close the case slowly during testing.
Glass, lenses, screens and delicate finishes may need a clean contact layer or separate protective cover.
Heavy items
A heavy product can compress convoluted peaks quickly. This may reduce available cushioning and allow the item to sit unevenly.
For load support, flat high load bearing foam or a firm closed cell base is usually easier to assess. Convoluted foam may still be useful on the lid or around lighter accessories.
Read the high load bearing packaging foam guide if the item is heavy or has concentrated feet.
Thickness and profile height
The stated thickness of convoluted foam may refer to the overall height of the profile. The valleys are thinner than the peaks.
This matters when calculating protection. A 30 mm convoluted sheet does not provide 30 mm of solid material everywhere.
Flat foam has a consistent depth, making base and side calculations more direct.
Use the packaging foam thickness guide and confirm the exact product dimensions.
Movement control
Foam should stop the item moving freely. A soft convoluted lid can help press several objects into their base locations.
However, the peaks do not create a precise side wall. If the product can slide, use flat side pads, compartments or a shaped insert.
Shake testing by hand can reveal obvious movement, but valuable or commercial packaging may require a more formal test process.
Layering flat foam
Flat sheets can be layered to build a thicker insert. Layers can also be cut differently to create a stepped cavity.
If layers are bonded, use a suitable adhesive and allow it to cure. Poor bonding can create loose layers that move around the product.
Adhesive backing can simplify fixing to a clean case wall, but the foam still needs to be correctly measured.
Combining flat and convoluted foam
A common layout uses:
- flat foam on the case base
- shaped flat foam around the product
- flat side pads
- convoluted foam in the lid
This gives stable support with flexible top contact.
Another layout may use a closed cell base for structure and a thin flexible flat foam at the contact surface.
Choose each layer for a purpose. Adding more foam types without a clear reason can reduce space and complicate replacement.
Surface protection
Flat foam provides continuous contact and can protect finished surfaces if the material is clean and suitable.
Convoluted foam contacts at peaks, which may leave temporary pressure patterns on soft or delicate surfaces. A clean cover, bag or flat contact layer may be useful.
Do not place dusty or contaminated foam against polished products. Inspect reusable case foam regularly.
Electronics
Ordinary flat and convoluted packaging foam should not be assumed to provide anti static protection.
Sensitive electronics may need identified anti static, static dissipative or conductive materials. The surface profile is a separate decision from the ESD property.
Read the anti static foam for electronics guide and follow the component specification.
Moisture
Flexible polyurethane packaging foam can absorb moisture. If lower water absorption is important, a closed cell polyethylene product may be more suitable.
Convoluted and flat describe shape, not material. A product can be flat and closed cell, or flat and open cell. Confirm both material and profile.
The polyethylene and polyurethane packaging foam guide explains the material difference.
Measuring the case
Measure internal length, width and depth at the narrowest points. Hinges, latches, ribs and rounded corners can reduce space.
For a lid, measure the depth available when the case is closed. Do not rely only on the open lid measurement.
Place the item in its intended orientation and allocate space for base, sides and lid. Include accessories, cables and handles.
Common mistakes
Choosing convoluted foam only because it looks protective
The egg crate profile is useful, but it may not provide stable load support beneath a heavy item.
Compressing the lid too far
Excessive compression can place constant pressure on the product and strain the case latches.
Ignoring valley thickness
The minimum material depth in a convoluted sheet is lower than the peak height.
Using flat foam without movement control
A flat pad can cushion a product but may allow it to slide if the sides are not supported.
Assuming the profile confirms anti static performance
A convoluted profile does not confirm ESD performance. Use identified specialist foam where required.
Which should you choose?
Choose flat packaging foam when you need even support, predictable thickness, box lining, separators or a simple base.
Choose convoluted packaging foam when you need flexible lid contact, accommodation for slight height differences or gentle pressure across several light items.
Use both when the base needs stable support and the lid needs a more adaptable surface.
A quick decision checklist
Ask:
- Is the foam for the base, side or lid?
- Is the item light, heavy or fragile?
- Is the contact surface flat or irregular?
- How much internal depth is available?
- Must the item be held in one exact position?
- Does the package need electrostatic control or lower water absorption?
- Will the case be reused?
Answering those questions is more reliable than choosing by appearance.
Key takeaway
Flat packaging foam provides even support and predictable thickness. Convoluted packaging foam provides a flexible surface that can contact items at different heights.
For many cases, flat foam is the better base and convoluted foam is useful in the lid. The final design depends on weight, fragility, movement and case space.
