Packaging foam should be thick enough to stop the item reaching a hard wall during normal handling, but not so thick that the product is squeezed or the case cannot close. There is no single correct thickness for every item. The All Foam packaging foam sheets page offers different sizes and depths across flexible, convoluted, anti static, semi rigid, closed cell and high load bearing foam.

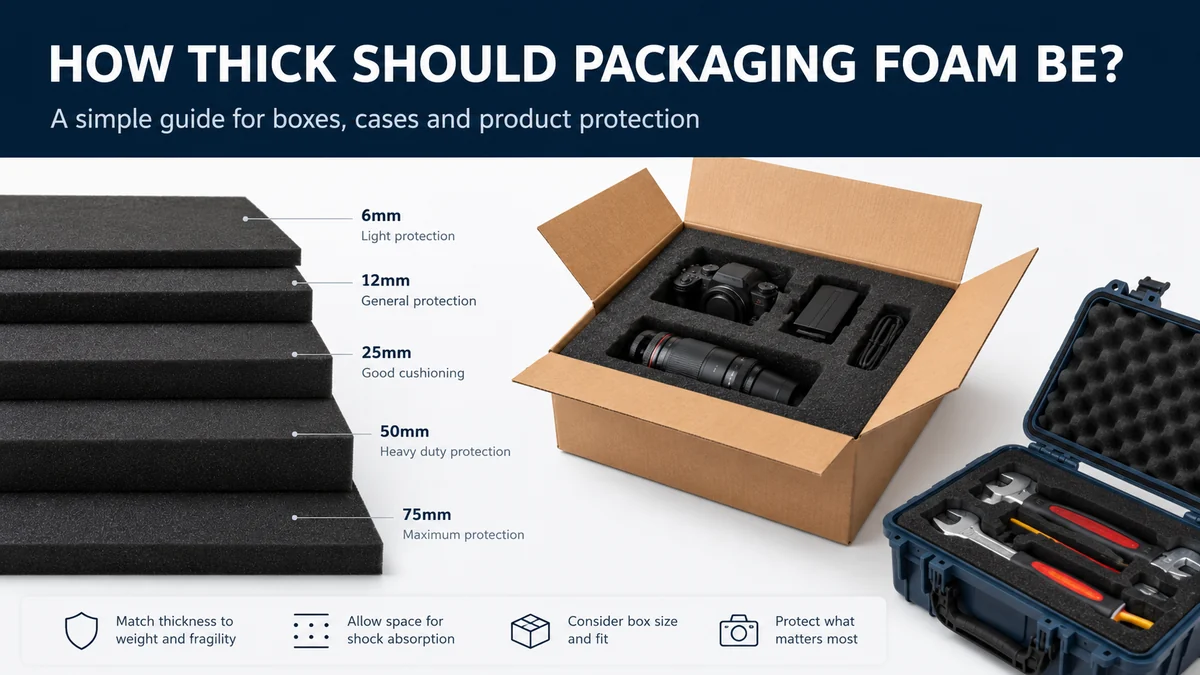

The right thickness depends on item weight, fragility, contact area, journey and the usable space inside the box or case. Any thickness examples shown in illustrations are general planning examples, not fixed recommendations for a particular product.
Why thickness matters
Foam protects by compressing. That controlled movement helps reduce the force transferred to the product.
If the foam is too thin, it may compress completely. The item can then strike the hard box or case wall. This is called bottoming out.
If the foam is too thick for the available space, the item may be under constant pressure. The lid may be difficult to close and fragile features can be damaged.
Thickness must therefore be planned with the complete package.
Start with usable internal dimensions
Measure the inside of the finished box or case, not the outside.
Record:
- narrowest internal length
- narrowest internal width
- usable depth in the base
- usable depth in the lid
- space lost to hinges, ribs and latches
- rounded corners or sloping walls
Moulded cases can be narrower at the base than at the opening. Measure at the level where the foam will sit.
Use the foam measuring guide for general measuring advice.
Measure the item at its widest points
Include handles, controls, plugs, feet and accessories. Decide which parts will travel in the same compartment.
Do not use the nominal product size if a cable, connector or protective cover adds extra depth.
Record the strongest support areas. The foam should carry weight through the frame or casing, not through a screen, switch or delicate fitting.
Calculate the space available for foam
Subtract the item dimensions from the internal case dimensions.
If the case is 50 cm wide and the item is 40 cm wide, 10 cm remains. If the item is centred, that allows about 5 cm on each side.
Do the same for length and depth. Remember that lid foam uses part of the remaining depth.
This calculation gives the maximum available thickness, not necessarily the correct cushioning thickness.
Item weight
Heavy items compress foam more than light items. They may need firmer material, greater thickness or a larger support area.
A broad flat item spreads its weight. An item on four narrow feet concentrates pressure and can cut deeply into foam.
For heavy equipment, read the high load bearing packaging foam guide.
Fragility
A fragile product may need more cushioning travel even when it is light.
Glass, instruments, optical equipment and sensitive assemblies can be damaged by sudden impacts. They may need a carefully selected foam and enough thickness to slow movement.
Fragile features should not carry the load. Support the strong body of the product and leave clearance around controls, lenses and connectors.
Journey and handling
Storage needs can be different from transport needs.
A drawer insert may only prevent scratching. A flight case may experience repeated loading, vibration and knocks. A courier parcel may be dropped or stacked on any side.
Ask:
- Who will handle the package?
- Can it be turned upside down?
- Will it travel by courier, van or pallet?
- Will it be stacked?
- Is repeated use expected?
- Could it encounter moisture or dirt?
More demanding journeys usually need a stronger outer package and a more carefully tested foam layout.
Base thickness
The base carries the static weight. It should prevent the item reaching the hard floor during storage and impacts.
A heavy product may use high load bearing polyurethane packaging foam, firm closed cell foam or semi rigid foam in the base. A lightweight, fragile product may use softer flexible foam.
Do not make the base so deep that the lid presses heavily on the item. Balance every layer.
Side thickness
Side foam controls horizontal movement and protects against impacts from different directions.
If the product can slide, base foam alone is not enough. Use side pads, partitions or a shaped cavity.
Leave enough thickness between the item and the outer wall. Very thin side strips can tear or provide little impact travel.
Lid thickness
Lid foam prevents vertical movement. Flat foam suits regular top surfaces. Convoluted foam can contact items of slightly different heights.
Convoluted foam has peaks and valleys. Its maximum height is not solid thickness across the entire sheet.
Close the case slowly and check pressure. The latch should engage normally without forcing the contents.
Read the flat and convoluted packaging foam guide for profile advice.
Thickness for box lining
Thin flat foam can line cardboard boxes, separate products and protect surfaces from rubbing.
For impact protection, a thicker layer may be required. The correct depth depends on the item and the strength of the box.
A weak outer box can collapse even when the foam is suitable. Packaging works as a system.
Thickness for tool cases
Tool cases need enough foam to hold each tool while leaving practical access.
A top layer can be cut to the tool outline. A solid base layer beneath it prevents the tool reaching the case floor.
Leave enough foam between tools so the walls do not tear. Heavy tools may need a firmer base.
The toolbox and flight case insert guide explains layout and finger spaces.
Thickness for electronics
Electronic devices need physical cushioning and may also need electrostatic control.
Do not choose thickness before confirming whether anti static, static dissipative or conductive material is required.
Keep pressure away from boards, pins and connectors. Use enough depth to separate accessories from the main device.
Read the anti static foam guide.
Thickness for heavy industrial parts
Heavy parts may need firm support blocks rather than one soft sheet.
Spread the load under flanges, feet and broad structural areas. Avoid narrow support points.
A firmer base may be combined with a softer surface layer if the part has a delicate finish.
Prototype and test valuable industrial packaging before production use.
Flat thickness versus convoluted height
A flat 25 mm sheet provides 25 mm of material across its area.
A convoluted sheet with a 30 mm overall height has thinner valleys. It provides flexible peak contact rather than a solid 30 mm block.
Do not compare those numbers as if they describe the same amount of cushioning.
Layered foam constructions
Several thinner sheets can be layered to create the required depth. Layers can also be cut differently to form a stepped cavity.
Layering can make replacement easier and allow different materials to perform different roles.
For example:
- firm base layer for support
- shaped middle layer to locate the item
- softer contact layer for surface protection
- convoluted lid layer for height variation
Bond layers only when necessary and use a suitable adhesive.
Compression allowance
The item should engage the foam enough to control movement, but the foam should retain travel for impacts.
A lid that compresses foam slightly can hold the product. A lid that crushes the foam nearly flat has little remaining cushioning.
Check the pack after the item has been stored for a period, especially with heavy products. Permanent compression can change the fit.
Finger access and removal
A deep cavity can hold an item securely but make it difficult to remove.
Add finger spaces, straps or a stepped edge where appropriate. Do not reduce the support around a heavy item so much that the insert becomes weak.
Repeated pulling can tear thin cavity walls.
Prototype before ordering a large quantity
A sample pack allows you to check fit, closure, movement and removal.
Use a template for shaped cavities. Test with all accessories and protective covers in place.
For commercial packaging, testing should reflect the real distribution process. A simple hand check does not replace any formal test required for the application.
Common mistakes
Filling every gap with foam
More foam is not always better. Packing the case too tightly can put pressure on the product and strain the case.
Copying a competitor thickness
A different product weight, case or foam type can require a different depth.
Ignoring concentrated loads
Small feet and corners can compress foam much more than a broad base.
Treating profile height as solid thickness
Convoluted peaks and valleys behave differently from flat sheets.
Forgetting the lid
A case may look correct when open but compress the item too far when closed.
Using one material everywhere
Base, side, lid and contact layers can have different requirements.
A practical planning sequence
First measure the usable container and the item. Calculate the maximum space around every side.
Next identify weight, fragility and the journey. Choose a suitable foam family.
Allocate base, side and lid thickness. Add access spaces and separate accessories.
Build a prototype. Check that the item cannot contact hard surfaces, move freely or experience excessive pressure.
Review the foam data sheets where the material specification matters.
Key takeaway
Packaging foam should be thick enough to provide controlled compression without allowing the item to hit the container. It should also fit without squeezing the product or forcing the lid.
The right thickness depends on weight, fragility, contact area, foam type, journey and available space. Measure the complete pack and test it with the actual item.
For help, send the internal case dimensions, product dimensions, approximate weight and intended use through the All Foam contact page.
