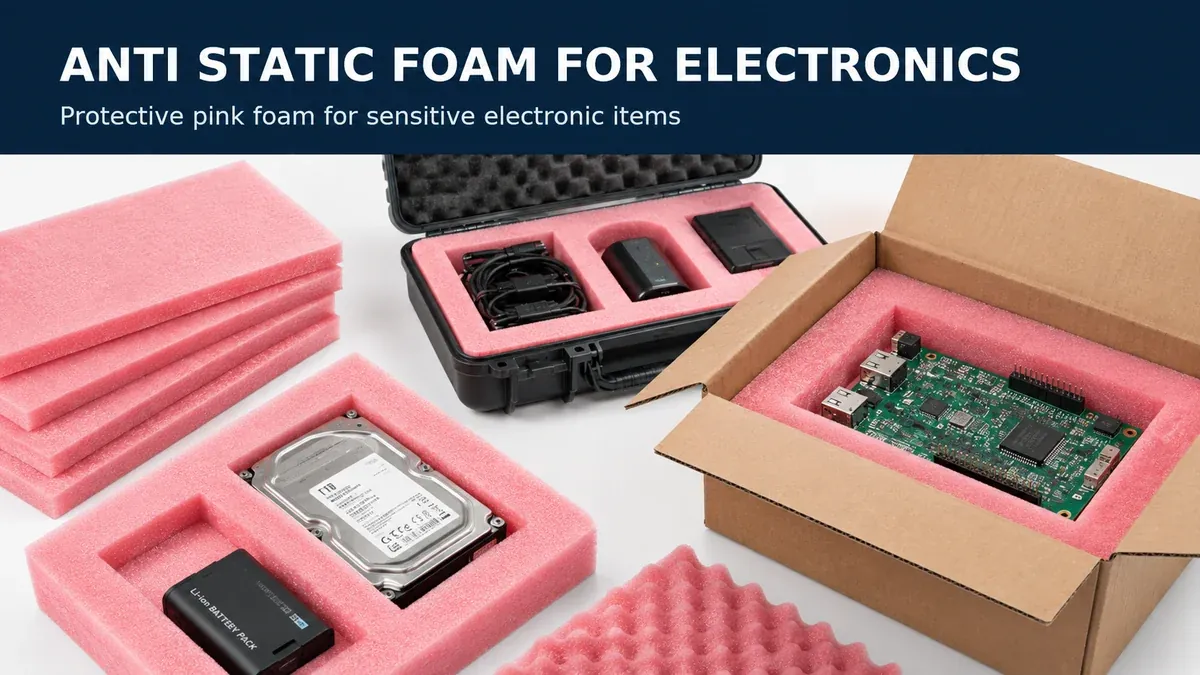

Anti static foam is designed for packaging electronic products where ordinary cushioning may not be appropriate. It can help reduce risk from static charge while also providing physical protection. The All Foam packaging foam sheets page includes pink anti static foam alongside flat, convoluted, semi rigid, closed cell and dense protective materials.
The key point is that foam alone does not make every package safe for every electronic device. The component specification, handling process, bags, containers and work area may all form part of the electrostatic discharge plan.
Why static matters around electronics
Static electricity can build when materials contact and separate. Walking across flooring, removing tape, handling plastic packaging and moving components can all create charge.
A discharge may be felt as a small shock, but sensitive electronics can be affected by lower levels that a person does not notice. This is why electronic packaging often uses materials selected for electrostatic control rather than ordinary foam chosen only for cushioning.
The risk depends on the component. A complete appliance in a closed casing may have different requirements from an exposed circuit board, chip or connector assembly.
What is anti static foam?
Anti static foam is formulated or treated to reduce the generation of static charge. Some ESD materials also allow charge to dissipate in a controlled way, depending on their specification. Pink is a familiar colour for anti static packaging foam, but colour alone is not a specification.
The material can cushion components, line boxes and separate items. It is commonly used for electronic products, assemblies, boards and accessories.
Always check the product data and the equipment requirement. A pink sheet from an unknown source should not be assumed to meet a defined ESD standard.
Anti static, static dissipative and conductive are different
These terms are often used loosely in online searches, but they describe different electrical behaviour.
Anti static materials are intended to reduce charge generation. Static dissipative materials allow charge to move in a controlled way. Conductive materials allow charge to move more readily and may be used as part of a grounded system.
The right category depends on the device and handling plan. Do not substitute one term for another without checking the requirement.
For a critical application, follow the component manufacturer’s specification, the approved ESD control plan or advice from the responsible engineer.
What anti static foam can do
A suitable anti static foam can provide two forms of protection:
- physical cushioning against knocks and movement
- electrostatic control appropriate to its stated material properties
It can be cut into pads, dividers and cavities. It may be used around boards, components and electronic devices.
The physical design still matters. Foam that allows a board to move can damage connectors. Foam that presses on fragile pins can cause mechanical damage even if its anti static properties are suitable.
What anti static foam cannot do alone
Anti static foam does not automatically create a complete ESD protected package.
Depending on the item, the pack may also need:
- a shielding bag
- a suitable outer container
- controlled handling
- grounded work surfaces
- wrist straps or other process controls
- humidity management
- clear identification and instructions
The foam should be one part of the system. When packing valuable or safety critical electronics, follow the relevant internal, supplier or engineering specification.
Which electronics may need specialist packaging?
Examples can include:
- exposed printed circuit boards
- integrated circuits and chips
- sensors and control modules
- communications equipment
- test and measurement devices
- computer components
- connectors and small assemblies
- medical or industrial electronic parts
A finished consumer product may still need impact and moisture protection, but the ESD requirement may differ from that of an exposed component.
Foam layout for circuit boards
Support a board at strong areas rather than pressing on components, solder joints or connectors. Keep the board from sliding and prevent accessories from striking it.
A cavity should allow sensible removal. Avoid a tight slot that forces the user to grip components or bend the board.
Where pins extend from the board, provide enough clearance that they do not carry the load. Consider a tray, bag or holder designed for the purpose where the geometry is complex.
Foam layout for complete electronic devices
A complete device may need protection for screens, controls, sockets and lenses. Support the case or frame rather than fragile features.
Keep power supplies, leads and accessories in separate spaces. A heavy charger can damage the main device if both are allowed to move within one cavity.
The outer box or case should have enough strength for the journey. Foam cannot compensate for a crushed or poorly closed container.
Choosing foam thickness
Thickness should provide enough cushioning without creating excessive pressure.
A thin sheet can separate components or protect a surface. A thicker insert can locate a device and absorb more movement.
Consider:
- item weight
- fragility
- available box depth
- expected handling
- distance to hard walls
- pressure on controls and connectors
- whether the package will be reused
Read the packaging foam thickness guide rather than simply choosing the thickest sheet that fits.
Anti static foam and convoluted profiles
Convoluted foam has raised peaks. It can provide contact across items of slightly different heights and is sometimes used in lids.
However, a convoluted surface has less solid contact area than a flat sheet. The peaks can compress more easily. For delicate boards and defined cavities, flat foam may provide more predictable support.
The All Foam online range includes flat pink anti static packaging foam. For a profile or specification that is not shown online, contact the team before ordering.
The flat and convoluted packaging foam guide explains the physical differences.
Anti static foam versus ordinary pink foam
Pink is commonly associated with anti static packaging, but colour is not proof of performance. A decorative pink foam or upholstery foam may have no ESD properties.
Likewise, not every black foam is conductive, and ordinary white foam should not be assumed to suit sensitive electronics.
Use product identification and data. Keep different foam offcuts labelled so they are not mixed in the workshop.
Anti static foam versus closed cell polyethylene foam
Standard closed cell polyethylene foam can provide firm physical protection and lower water absorption, but it is not automatically anti static.
Some specialist polyethylene foams are available with ESD properties. If the device needs both a firm insert and electrostatic control, check for a product that meets both requirements rather than combining assumptions.
Read the closed cell polyethylene foam packaging guide for the general material properties.
Handling and storage
Keep anti static foam clean and correctly identified. Dirt, oil, adhesive residue and environmental exposure can affect the package and may affect electrical performance.
Store sheets away from heat, direct sunlight and contamination. Do not mix anti static offcuts with ordinary packaging foam.
For reusable packs, inspect the material and the complete ESD process regularly. Replace foam that is damaged, permanently compressed or no longer clearly identified.
Cutting anti static foam
Use a clean, sharp tool and a stable surface. Measure twice and cut with controlled passes.
Clean tools are important because contamination from other materials can be transferred to the foam. Keep the cutting area free from loose fibres and debris where electronics will contact the insert.
Leave enough foam around cavities to prevent tearing. Rounded internal corners can improve durability.
The general guide to cutting foam sheets covers safe measuring and cutting techniques.
Packaging boards in bags and foam
A shielding or anti static bag may be specified around a circuit board before it is placed into foam. The bag and the cushioning material perform different protective roles, so one should not be treated as a substitute for the other.
Do not puncture a protective bag with sharp foam edges, staples or poorly placed accessories. Ensure the cavity does not squeeze the board through the bag.
If the pack uses a conductive layer or grounded container, follow the approved design. Improvised combinations can produce unexpected results.
Outer packaging and labels
The foam protects the product inside, but the outer package also needs to withstand handling. Use a box or case that suits the weight and journey.
Labels can help handlers identify sensitive electronics, orientation and moisture restrictions. They do not replace physical protection.
For repeated company processes, include packing instructions so the same accessories, bags and foam layers are used each time.
Common mistakes
Choosing ordinary foam because it looks similar
Appearance does not confirm ESD properties. Use the identified anti static product and data.
Treating anti static as conductive
The terms are not interchangeable. Confirm the required resistance category.
Ignoring mechanical damage
Static protection does not stop a charger, cable or loose component striking a board.
Pressing on fragile parts
Support the strongest structure and leave clearance around pins, controls and connectors.
Reusing contaminated foam
Oil, dirt and unknown chemicals can make the package unsuitable. Inspect and replace it when necessary.
Forgetting the handling process
A suitable foam insert can be undermined by an uncontrolled work area or incorrect bagging process.
Questions to answer before ordering
Record:
- the exact device or component
- whether it is exposed or enclosed
- the required ESD material category
- dimensions and weight
- vulnerable features
- box or case dimensions
- expected journey
- reuse frequency
- required foam thickness
- any fire or cleanliness requirement
Review the foam data sheets and the equipment documentation. Contact All Foam if the online description does not answer a material question.
Terms to confirm before ordering
Anti static foam, static dissipative foam and conductive foam are sometimes grouped together in searches, but they do not describe the same electrical behaviour. Circuit board packaging may also need shielding, grounding or controlled handling beyond the foam itself.
Use the search term to identify a product family, then confirm the required material category and supporting specification before ordering.
Key takeaway
Anti static foam is used when electronic products need cushioning from a material selected to reduce static risk. It can protect components physically and support an ESD packaging plan, but it is not a complete solution by itself.
Confirm whether the device needs anti static, static dissipative or conductive material. Plan the bag, box, handling process and foam layout together.
For help with the All Foam pink anti static sheet, provide the item, dimensions, weight and known ESD requirement through the contact page.
